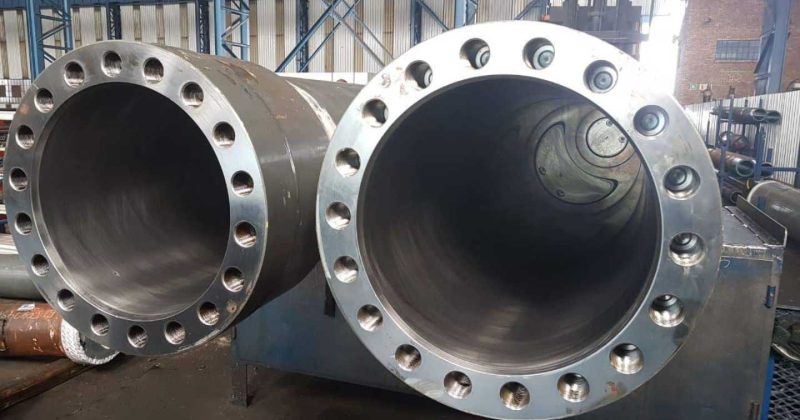

Precision is the cornerstone of performance in hydraulic systems. Hydraulic cylinder honing, a specialised machining process, plays a vital role in ensuring the optimal functioning of hydraulic cylinders by enhancing their internal surface quality. This article dives into the intricacies of hydraulic cylinder honing, shedding light on its significance, process, and the technology behind achieving unparalleled precision.
The Importance of Hydraulic Cylinder Honing
- Increased friction
- Accelerated wear and tear
- Seal failure
- Leakage and inefficiency
The Hydraulic Cylinder Honing Process
Honing involves the removal of material from the cylinder bore using abrasive tools. The goal is to achieve precise dimensions, a consistent surface finish, and a crosshatch pattern that supports lubrication. Below is an overview of the process:
| Step | Details |
|---|---|
| Preparation | The cylinder is cleaned, inspected, and mounted securely for honing. |
| Tool Selection | Honing stones are selected based on the material and desired finish. |
| Rough Honing | Removes larger material to correct size, including ovality, tapering and other geometric imperfections. |
| Finish Honing | Achieves the desired surface roughness and crosshatch pattern. |
| Measurement | Bore diameter and surface finish are measured to ensure compliance with specs. |
The Role of Precision in Honing

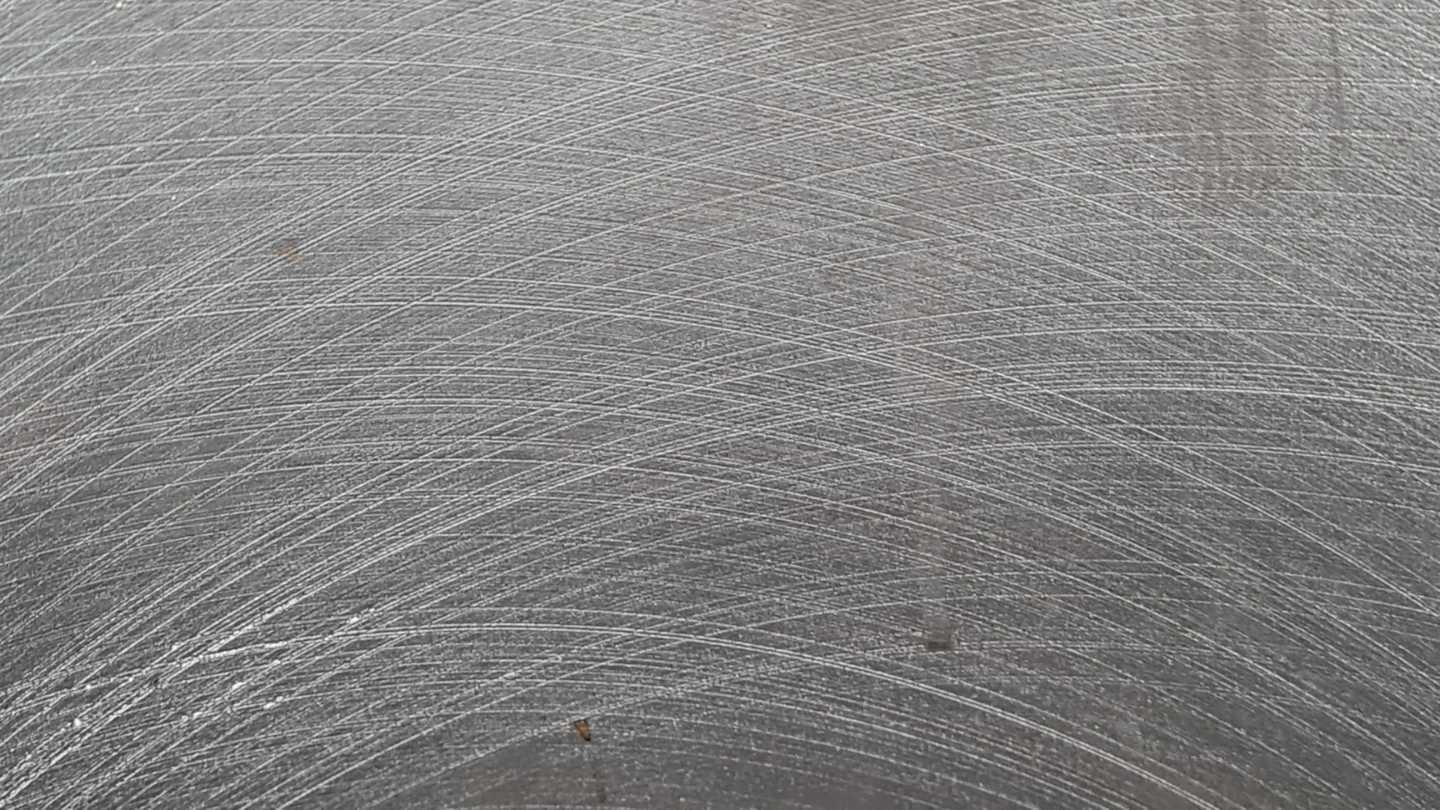

Surface Roughness
Surface roughness, measured in micrometres (µm), is a key metric in hydraulic cylinder honing. A rough surface can cause excessive wear, while an overly smooth surface may hinder lubrication. The ideal roughness depends on the application and is achieved through meticulous control of the honing process.
| Surface Roughness (µm) | Application |
|---|---|
| 0.2–0.4 | Hydraulic systems that require low friction and wear. |
| 0.4–0.8 | General-purpose hydraulic cylinders. |
| Above 0.8 | This may lead to inefficiencies in high-precision systems. |
Dimensional Tolerances
Honing ensures that the bore meets tight dimensional tolerances, typically within microns. Precision in diameter, roundness, and straightness directly impact the cylinder’s efficiency and longevity.
The Technology Behind Hydraulic Cylinder Honing
Modern honing machines are equipped with advanced features to enhance accuracy and efficiency. Some key technologies include:
1. CNC Control
Computer Numerical Control (CNC) systems ensure consistent performance by automating tool movement and real-time monitoring of the process.
2. Adaptive Honing Tools
Tools with adjustable honing stones accommodate various bore sizes, allowing for versatility and precision.
3. Superabrasives
Superabrasives, including Diamond and Borazon, offer exceptional cutting ability and durability for a variety of materials. For mild steel applications, such as hydraulic cylinders, Borazon is typically used due to its effectiveness and longevity. At Honingcraft, we utilise bonded abrasives rather than coated abrasives to achieve the precision and surface quality required for cylinder barrel honing.
4. Measurement Systems
Integrated measurement systems ensure immediate feedback on bore dimensions, reducing errors and rework.
Benefits of Hydraulic Cylinder Honing
1. Enhanced Cylinder Performance
Improved surface finish reduces friction, enhancing the smooth operation of the hydraulic system.
2. Increased Lifespan
Proper honing minimises wear, extending the cylinder’s service life.
3. Energy Efficiency
Reduced friction lowers energy consumption, making operations more sustainable.
4. Cost Savings
By preventing leaks and premature failures, honing reduces maintenance and downtime costs.
Why Choose Honingcraft for Hydraulic Cylinder Honing?
At Honingcraft, precision is at the heart of everything we do. Our state-of-the-art facilities and skilled technicians ensure that every hydraulic cylinder we hone meets the highest industry standards. From custom solutions to large-scale projects, we are committed to delivering excellence.
Whether you’re looking to restore worn-out cylinders or enhance the performance of new ones, our expertise in hydraulic cylinder honing ensures reliable, long-lasting results.
Hydraulic cylinder honing is more than just a machining process; it’s an art and science that ensures hydraulic systems perform at their best. By prioritising precision at every step, Honingcraft continues to set the benchmark for quality in hydraulic engineering. Contact us today to learn more about how our honing services can elevate your operations.
