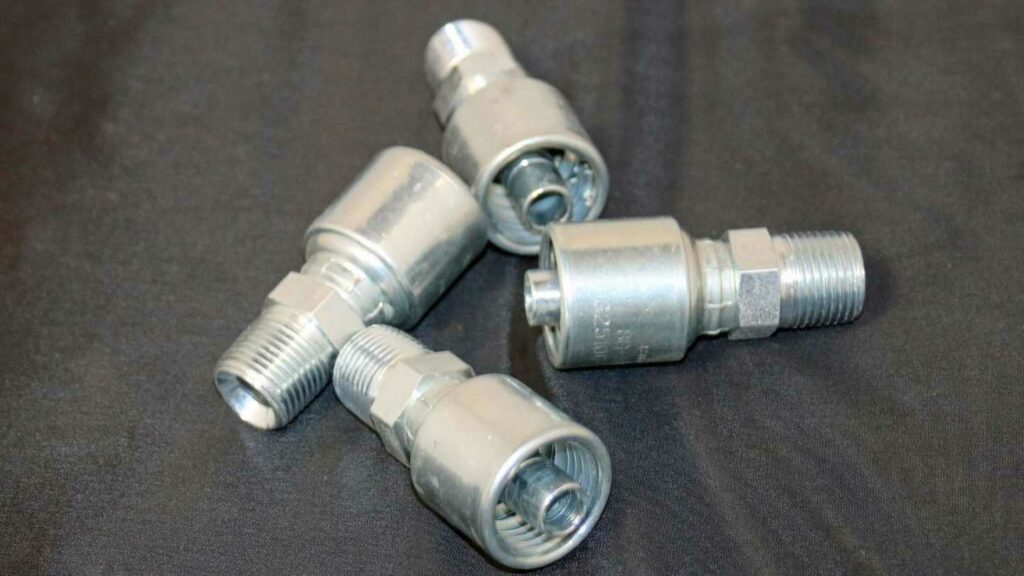

Hydraulic fittings serve as connectors within a hydraulic system, ensuring seamless fluid transmission under high pressure. These fittings are crucial for maintaining the integrity of hydraulic circuits, preventing leaks, and enabling efficient operation across various industrial applications. A well-chosen fitting can significantly reduce system failures, prolong component lifespan, and improve overall performance. Selecting the right type of hydraulic fitting is not only essential for preventing leaks but also for ensuring minimal downtime and enhancing overall system efficiency. Proper fittings also contribute to safety by preventing accidental disconnections and reducing risks associated with high-pressure fluid leaks.

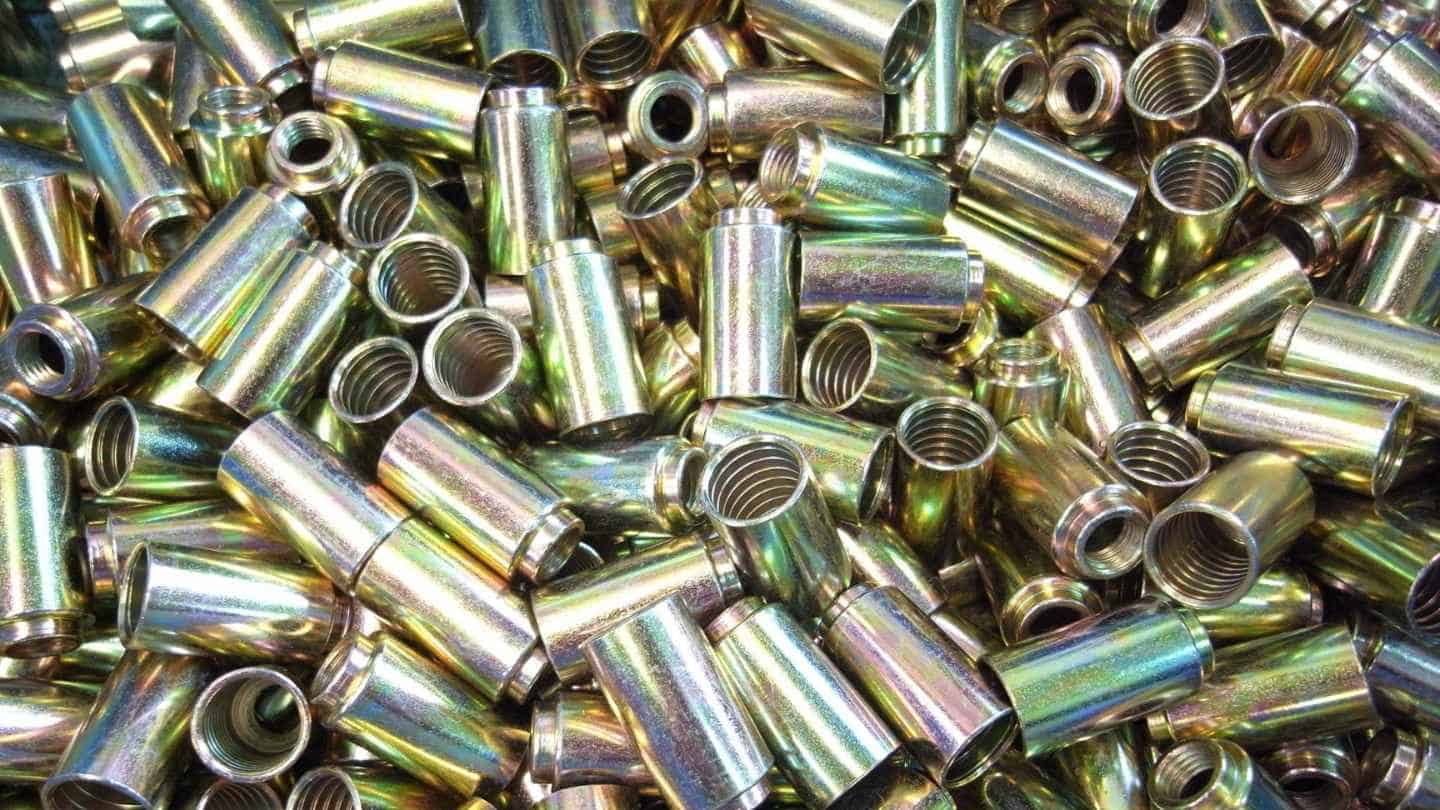

The Main Types of Hydraulic Fittings

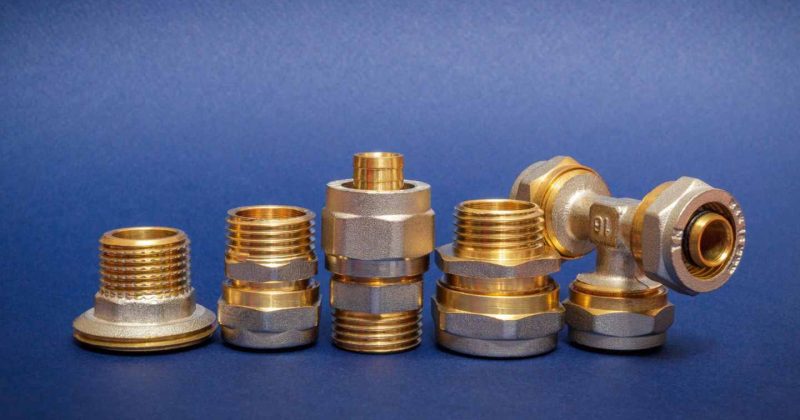

1. Threaded Fittings
- NPT (National Pipe Thread): Common in North America, known for its tapered threads that create a tight seal.
- BSP (British Standard Pipe): Found in European and international applications.
- JIC (Joint Industry Council): Features a 37-degree flare for leak-free performance.
- SAE (Society of Automotive Engineers): Designed for high-pressure hydraulic applications.
2. O-Ring Face Seal (ORFS) Fittings
ORFS fittings provide a secure, leak-proof connection by using an O-ring between the sealing surfaces. These fittings are ideal for high-pressure applications and are resistant to vibration and thermal expansion.
3. Flare Fittings
Flare fittings are designed with a flared tube end that mates with a corresponding fitting. They are widely used in high-pressure hydraulic systems and provide excellent resistance to leaks.
4. Compression Fittings
Compression fittings consist of a compression nut and ferrule that create a tight seal around the tubing. They are used for medium-pressure applications and provide a reliable connection without requiring welding or flaring.
5. Quick-Connect Fittings
Quick-connect fittings allow for easy and fast connection or disconnection without the need for tools. These fittings are commonly used in systems that require frequent assembly and disassembly, such as mobile hydraulic equipment.
6. Flange Fittings
Flange fittings are used for high-pressure applications, providing a strong and secure connection. They are commonly found in industrial and heavy-duty hydraulic systems.
7. Barbed Fittings
Barbed fittings are designed for use with flexible hoses, where the barbs grip the inner diameter of the hose to create a secure seal. These fittings are easy to install and commonly used in low-pressure applications.
Comparison of Hydraulic Fitting Types
To help you choose the right fitting for your application, here’s a comparison of the different types of hydraulic fittings:
Fitting Type | Application Use Case | Pressure Rating | Leak Resistance | Installation Ease |
Threaded Fittings | General hydraulic systems | High | Moderate | Moderate |
ORFS Fittings | High-pressure applications | Very High | Excellent | Moderate |
Flare Fittings | High-pressure systems | High | Good | Moderate |
Compression Fittings | Medium-pressure systems | Medium | Good | Easy |
Quick-Connect Fittings | Mobile equipment | Variable | Moderate | Very Easy |
Flange Fittings | Heavy-duty applications | Very High | Excellent | Complex |
Barbed Fittings | Low-pressure systems | Low | Moderate | Very Easy |
Choosing the Right Hydraulic Fitting
When selecting the right hydraulic fitting, consider the following factors:
- Pressure Requirements: Choose a fitting that matches the pressure rating of your system.
- Environmental Conditions: Consider exposure to chemicals, temperature fluctuations, and vibration.
- Compatibility: Ensure the fitting is compatible with your hydraulic fluid and other system components.
- Ease of Installation: Some fittings require specialised tools or expertise for proper installation.
- Cost vs. Performance: Balance affordability with durability and performance requirements.
Conclusion
Choosing the right hydraulic fittings is essential for ensuring the efficiency, safety, and longevity of your hydraulic system. Whether you’re working in construction, oil and gas, or heavy machinery, selecting high-quality fittings can prevent downtime and costly repairs.
At Honingcraft, we specialise in providing high-quality hydraulic components, including precision-engineered fittings for various industrial applications. If you need expert guidance in selecting the right hydraulic fittings for your system, contact us today. Our team is ready to assist you with all your hydraulic needs!
